High Temperature Cable Twisted Pair Teflon Screened Cable – 5x2x0.08mm² 500V SPC/FEP/TCWB/TPE for High Density Signal Transmission

Delivery Time : 5-20DAYS

Collective Screen : TCWB Tinned Copper Wire Braiding 85% Coverage

Rated Voltage : 500V

Model Number : D534

Section Area : 5x2x0.08mm²

Payment Terms : T/T

Insulation Color : Red / Yellow / Blue / White / Black / Green / Brown / Orange / Purple etc.

Application : instrumentation and control applications

Certification : UL CE ISO9001

Conductor : SPC silver plated copper, stranded, circular

MOQ : 300meters

Packaging Details : By Carton, Drum, or Wooden Box

Insulation : FEP compound

Binder : Non-Woven Tape

Supply Ability : 10000Meters/DAY

Pair Construction : Twisted pairs, 5pairs

Rated Temperature : +200℃

Brand Name : DINGZUN CABLE

Cable Type : High temp twisted pair cable SPC/FEP/TCWB/TPE

Place of Origin : China

Construction : 7/0.12

Sheath : TPE Compound Black

Contact Now

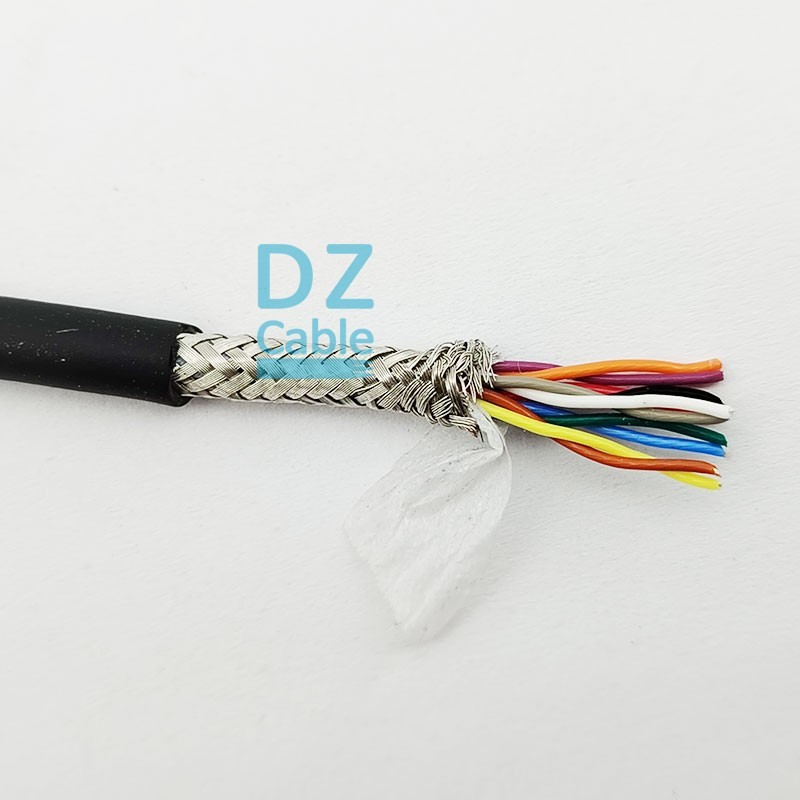

High Temperature Cable Twisted Pair Teflon Screened Cable – 5x2x0.08mm² 500V SPC/FEP/TCWB/TPE
Conductor: SPC Silver Plated Copper 7/0.12, Insulation: FEP Compound, 5 Pairs Twisted, Collective Screen: TCWB Tinned Copper Wire Braiding 85% Coverage, Binder: Non-Woven Tape, Sheath: TPE Compound Black.
This high temperature twisted pair cable features five pairs of 0.08mm² conductors with Teflon insulation and tinned copper braid screening, specifically engineered for high density signal transmission in elevated temperature environments requiring reliable noise rejection and compact design.

High Temperature Cable Twisted Pair Teflon Screened Cable – 5x2x0.08mm² 500V SPC/FEP/TCWB/TPE for High Density Signal Transmission

Key Features & Technical Advantages

  • 5 twisted pairs x 0.08mm² for high density multi-channel signal transmission

  • SPC silver plated copper 7/0.12 fine-strand conductors for high conductivity and oxidation resistance

  • FEP insulation for thermal stability (200°C+) and chemical resistance

  • Individual pair twisting for noise rejection and crosstalk reduction

  • Collective TCWB braid screen 85% coverage for EMI/RFI protection

  • Non-woven tape binder for core stability

  • TPE sheath for flexibility, durability, and abrasion resistance

  • 500V rating for instrumentation and control applications

Why Choose This High Temperature Wire Platform
This 5-pair design combines SPC conductors with FEP insulation and TCWB braid shielding for signal integrity in elevated temperature environments.
Typical Applications - Solving Critical High Temperature Challenges

  • Industrial Automation Systems: Provides multi-channel signal transmission for sensors and transmitters in elevated temperature environments

  • Process Control Equipment: Delivers reliable connections for data acquisition systems requiring multiple signal channels

  • High Temperature Environments: Supports sensor applications in aerospace, automotive, and petrochemical industries

  • Robotic Systems: Enables encoder and sensor signals in robotic applications near heat sources

  • Test & Measurement: Supplies clean signal transmission for laboratory and field equipment

  • Data Acquisition: Provides compact multi-pair cabling for control cabinets with high density routing

Request a Quote or Custom Specification
Ready to specify your high temperature wire configuration? Contact our technical sales team today.
Frequently Asked Questions

Q1: What is the advantage of SPC silver plated copper conductors?

A: SPC offers high conductivity, excellent oxidation resistance at elevated temperatures, and superior solderability, ensuring reliable signal transmission in high temperature applications.

Q2: Why is FEP insulation chosen for this cable?

A: FEP offers exceptional thermal stability up to 200°C+, excellent dielectric properties, and chemical resistance, maintaining performance in harsh environments.

Q3: What does 85% TCWB braid coverage provide?

A: 85% tinned copper wire braid coverage provides effective EMI/RFI protection while maintaining flexibility, shielding against external electromagnetic interference.

Q4: What is the purpose of the non-woven tape binder?

A: Non-woven tape maintains core geometry, prevents core migration during flexing, and adds mechanical stability to the cable construction.

Q5: Is this cable suitable for continuous flexing applications?

A: This cable is designed for fixed installation and occasional flexing. For continuous flexing applications, please consult our engineering team for dynamic cable options.
